Ball Valve Assembly

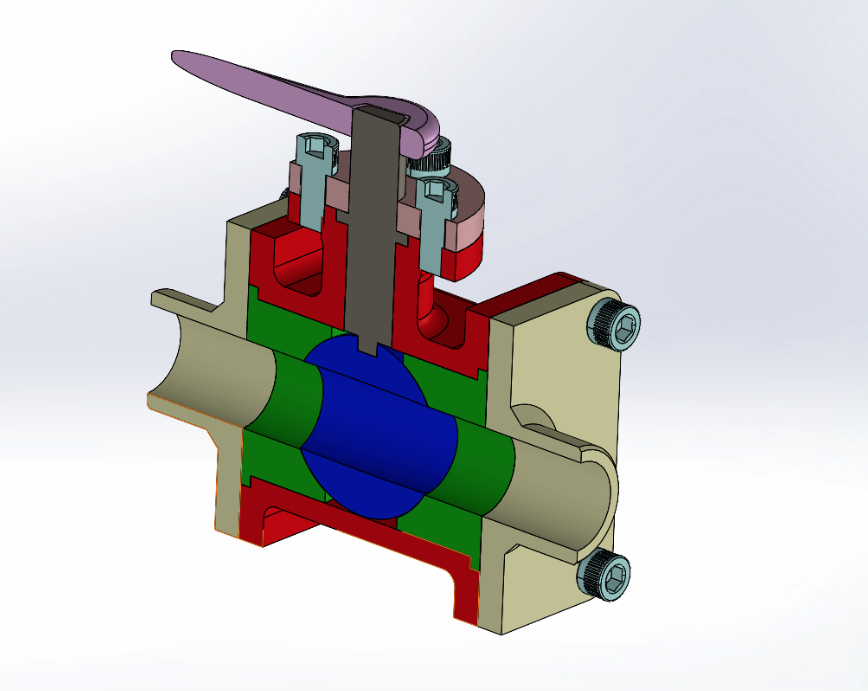

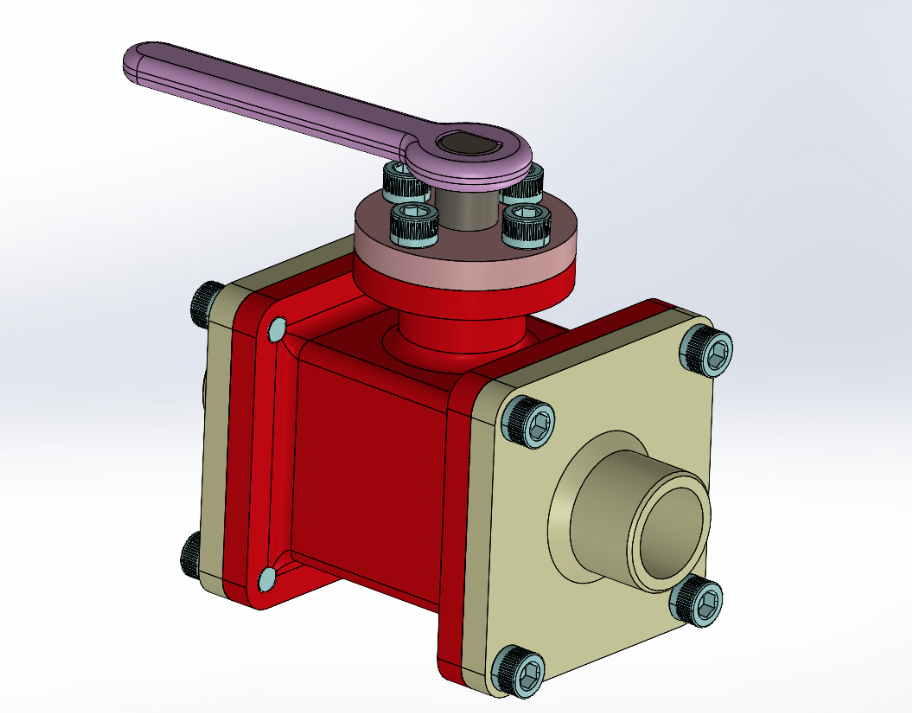

This functional assembly is designed to allow liquid through when the handle is turned, like in the picture on the right. Below is a demonstration of the handle movement (with transparent parts) and an exploded sequence to show all the individual components that make up the assembly.


Handle Motion

Explode Sequence
